Description

SP-WIRE-TAP-110 Welding Wire Guide Rod, made from S45C material, features high-precision CNC machining, high durability, and is suitable for wire guiding systems in automated welding.

🔷 PRODUCT DESCRIPTION

The SP-WIRE-TAP-110 Welding Wire Guide Rod is a specialized mechanical component used in welding wire guiding systems, helping to fix and accurately guide the wire during operation.

The product is manufactured from S45C material, offering high hardness, excellent load-bearing capacity, and strong wear resistance, making it suitable for industrial working environments. The optimized design combined with CNC machining ensures high precision and long-term stability.

The guide tube section is precisely machined and firmly TIG welded, ensuring durability and stable performance during operation.

🔷 KEY FEATURES

• Durable S45C material with high load capacity
• High-precision CNC machining
• Optimized design for welding wire guidance
• Robust structure with stable TIG welding
• Suitable for automated welding systems

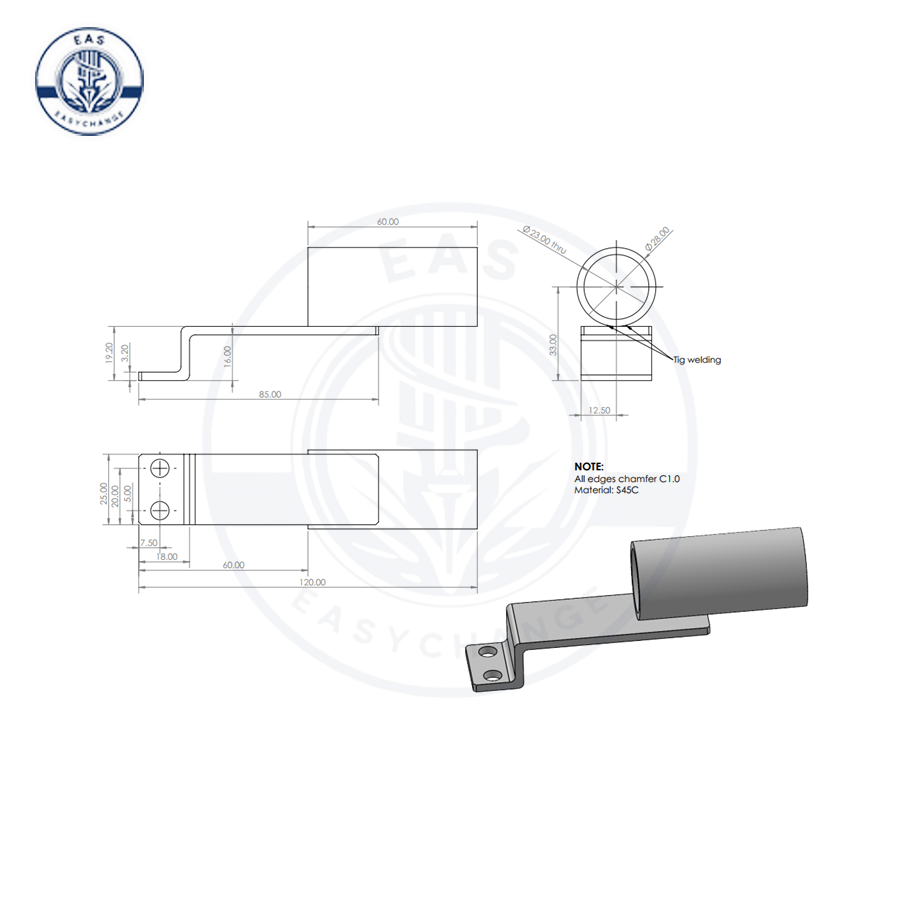

🔷 TECHNICAL SPECIFICATIONS

• Model: SP-WIRE-TAP-110
• Material: S45C
• Overall Length: 120 mm
• Body Length: 60 mm
• Guide Tube Diameter: ~Ø30 mm
• Machining Process: CNC + TIG Welding
• Edge Treatment: Chamfer C1.0
• Application: Welding wire guiding
