15” Industrial Metal Casing Monitor 1024×768 – B150-CB

The B150-CB is a 15-inch industrial monitor with a durable metal casing, designed for control cabinets, industrial machinery, and automation systems. It supports multiple industrial signal inputs, making it suitable for monitoring, control, and factory automation applications.

🔹 Key Features

• 1024×768 resolution with a 4:3 aspect ratio, ideal for traditional industrial systems

• Robust metal enclosure for enhanced durability in industrial environments

• High brightness of 350 nits for clear visibility in factory conditions

• Multiple input interfaces supported: VGA, AV, BNC, HDMI, USB

• Optional touch function, controlled via USB

• Backlight lifespan up to 50,000 hours

• Flexible installation options: VESA wall mount or hanging ears

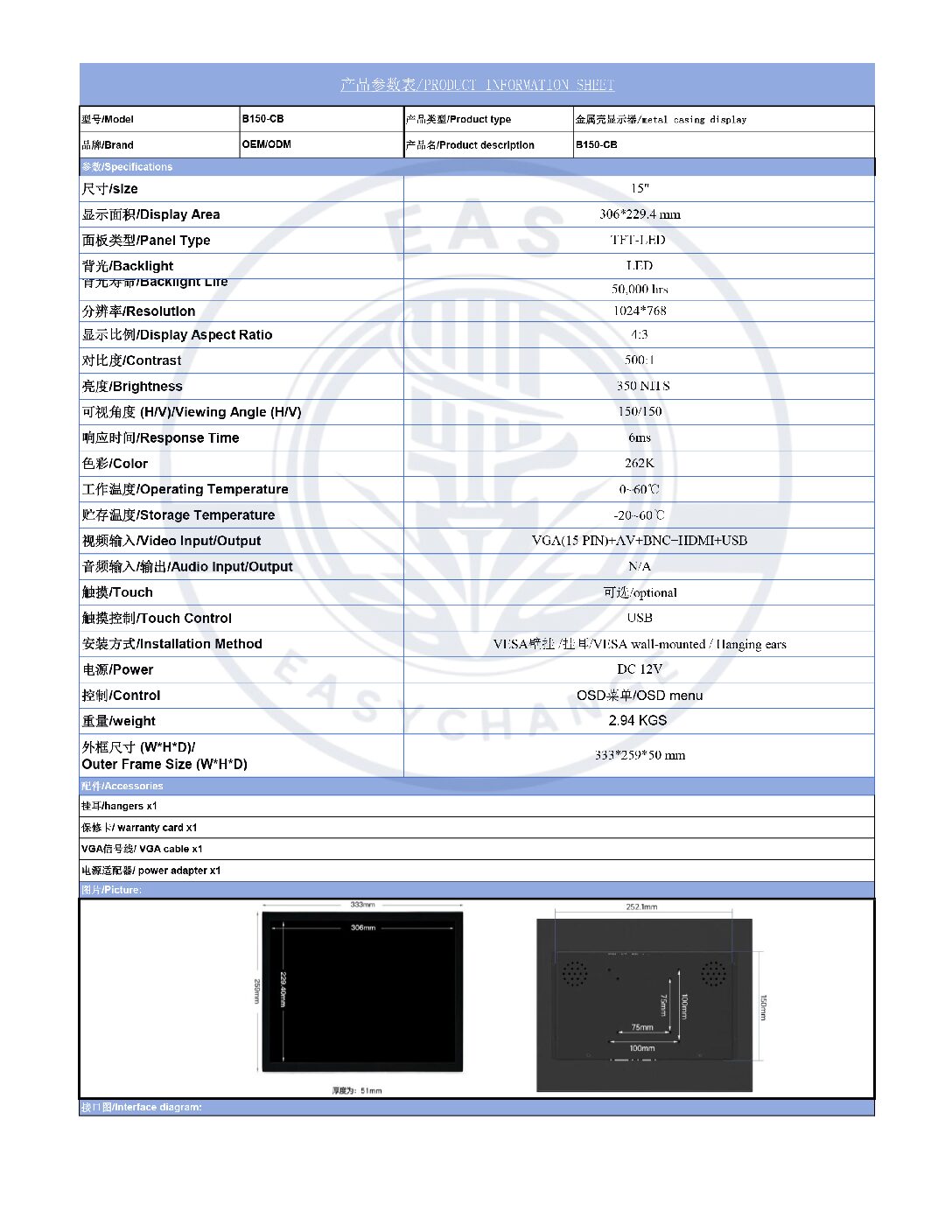

🔹 Technical Specifications

• Screen size: 15 inches

• Display area: 306 × 229.4 mm

• Resolution: 1024 × 768

• Aspect ratio: 4:3

• Brightness: 350 nits

• Contrast ratio: 500:1

• Response time: 6 ms

• Viewing angle (H/V): 150° / 150°

• Display colors: 262K

• Panel type: TFT-LED

• Backlight: LED

• Power supply: DC 12V

• Operating temperature: 0 ~ 60°C

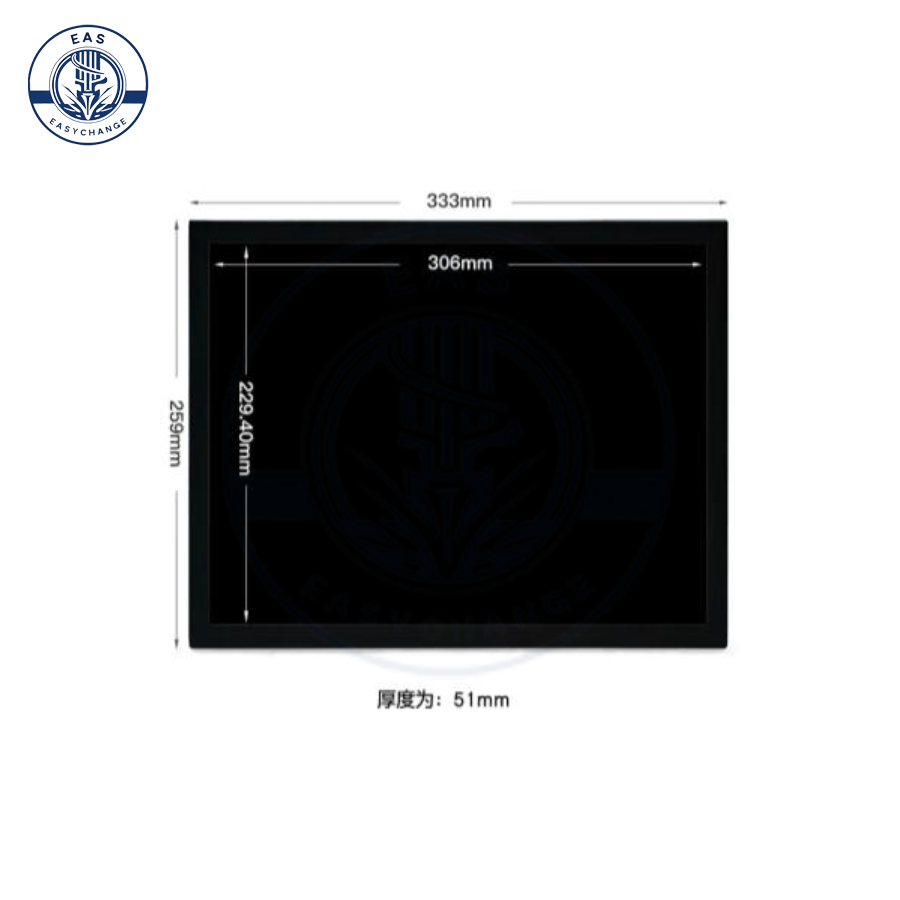

• Overall dimensions: 333 × 259 × 50 mm

• Weight: 2.94 kg

🔹 Applications

• Industrial control cabinets

• HMI and PLC systems

• Industrial machinery

• CCTV and monitoring systems (AV / BNC)

• OEM / ODM projects

🔹 Standard Accessories

• Hanging ears

• VGA cable

• Power adapter

• Warranty card
