Side Plate S50C-200-180-10, made from S50C material, features high-precision CNC machining, threaded holes and locating holes, suitable for jigs, fixtures, and industrial mechanical systems.

🟦 PRODUCT DESCRIPTION

The Side Plate S50C-200-180-10 is a precision mechanical component used as a side plate in jig systems, mechanical frames, and industrial equipment.

The product is manufactured from S50C steel, offering high hardness, excellent load-bearing capacity, and strong wear resistance. The flat plate design with precisely machined holes allows easy installation and secure integration with other components in the system.

All hole features are machined to high technical standards, ensuring accuracy and durability during long-term use.

🟦 KEY FEATURES

• High-strength S50C material with excellent load capacity
• High-precision CNC machining
• Simple design for easy installation
• Pre-machined threaded holes and locating holes
• Suitable for various mechanical applications

🟦 TECHNICAL SPECIFICATIONS

• Model: S50C-200-180-10
• Length: 200 mm
• Width: 180 mm
• Thickness: 10 mm
• Material: S50C
• Machining: Precision CNC
• Tolerance: ±0.10 mm

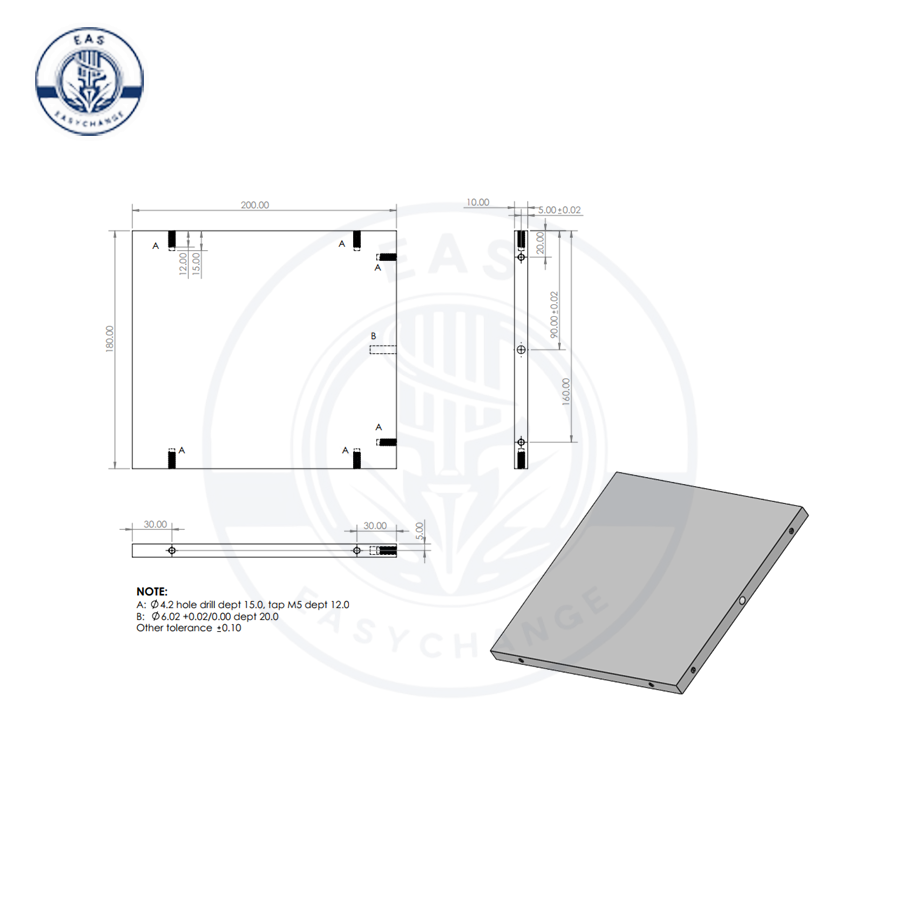

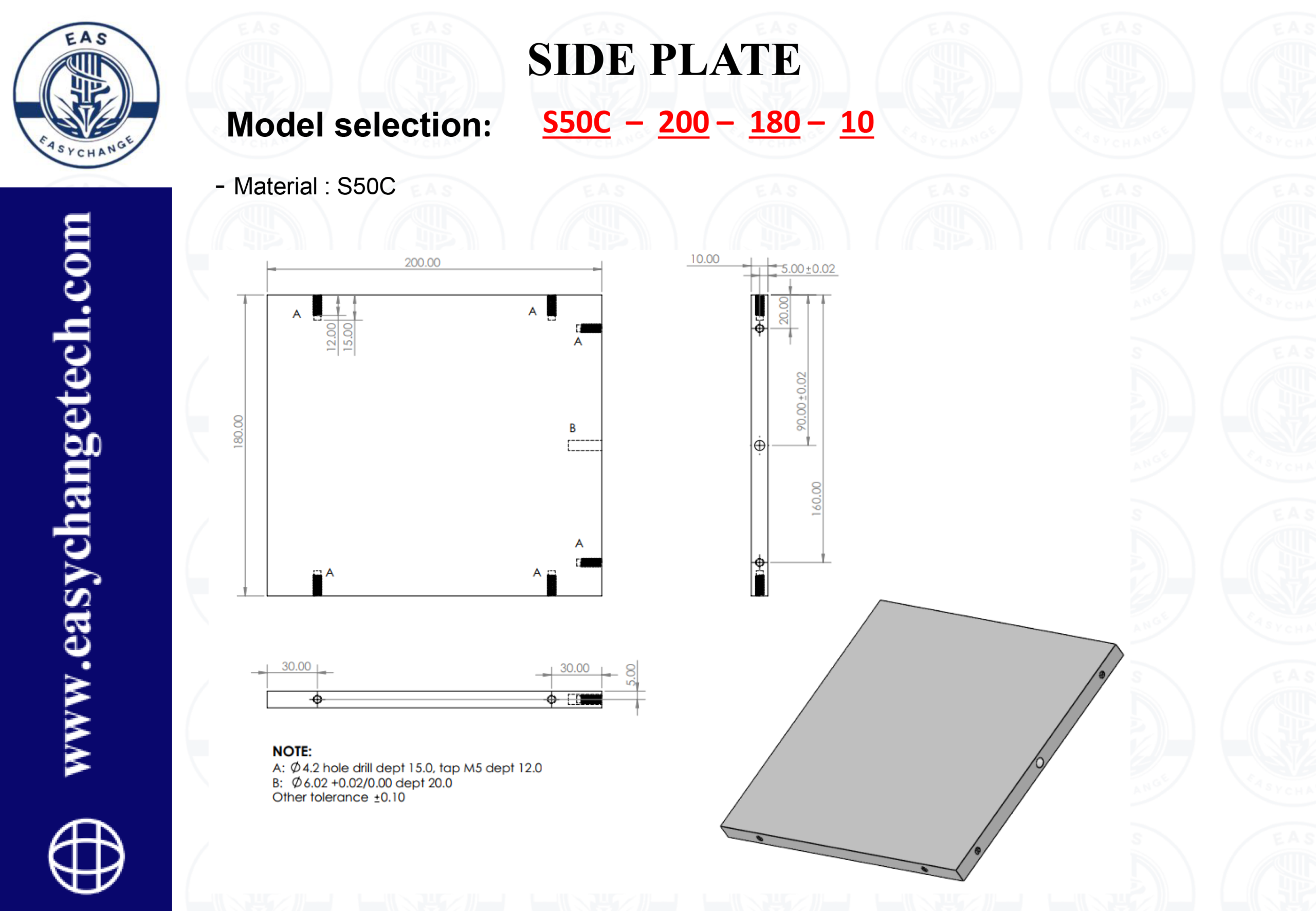

🟦 HOLE DETAILS

• A: Ø4.2 drilled depth 15.0 mm, M5 thread depth 12.0 mm
• B: Ø6.02 (+0.02/0) counterbore depth 20.0 mm
