Description

The JOD HS8 – 125 shaft is manufactured from S50C material, offering high strength, durability, and stable precision during operation.

It is ideal for mechanical systems, automation, and precision transmission applications.

Specifications

Product Code: HS8 – 125
Material: S50C
Overall Length: 125mm

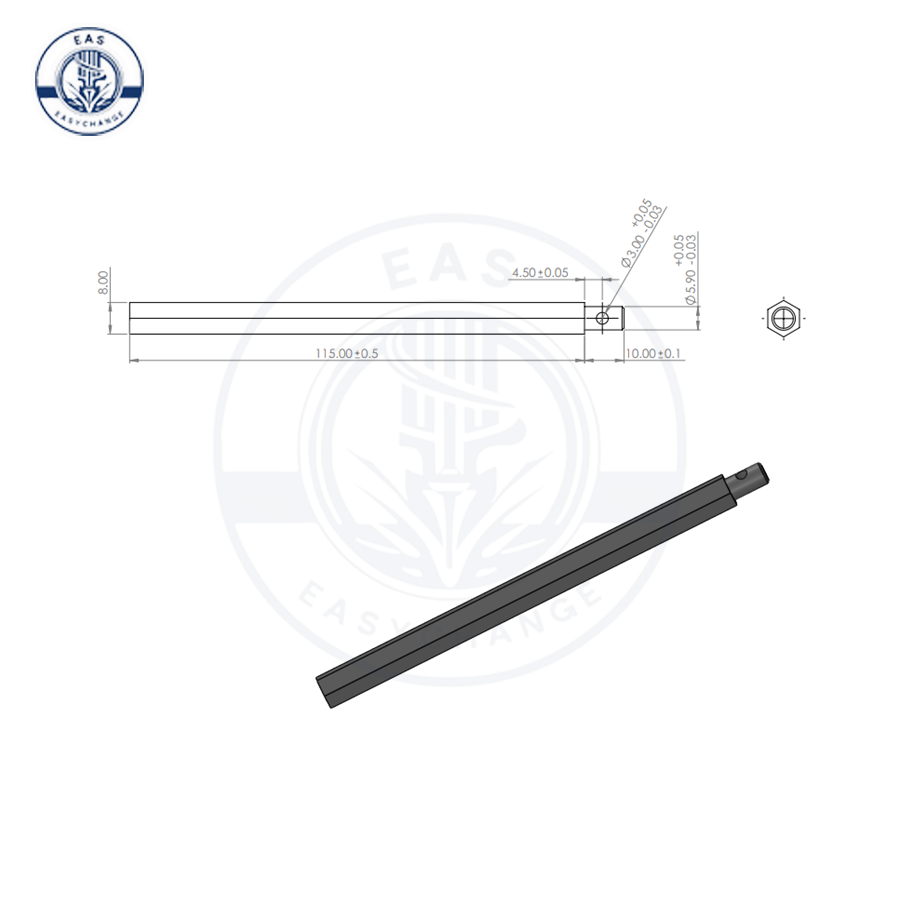

Detailed dimensions & structure:
Shaft diameter: 8mm
Main shaft length: 115 ± 0.5 mm
End section length: 10 ± 0.1 mm
End diameter: 5.90 ± 0.03 mm
Cross hole diameter: 3.0 ± 0.05 mm
Distance from end to hole center: 4.50 ± 0.05 mm
High machining accuracy with tight tolerance
Cross hole design for fixing/positioning

Key Features

High strength S50C material
Precision machining with tight tolerances
Optimized for mechanical assembly
Durable and long service life
Suitable for various transmission systems

Applications

Commonly used in:

Precision mechanical systems
Automation equipment
CNC machines
Transmission mechanisms
Machinery manufacturing
